840mm / 1050mm Forming Plate Roof Roll Former Machinery
With 6M /12M Auto Stacker
Character of main structure
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing in the factory.
- The machine has features of low noise and high efficiency.
Technical specification
| Item | Description |
| Coil width: | 1000/1250mm |
| Effective width | 840/1050mm |
| Working speed: | 15m/min (not contain cutting) |
| Roll station | 18stations |
| Material of roller | Cr45 steel, polished and coated with chrome |
| Material of main shaft | 45﹟forge steel |
| Diameter roller | Ф65mm solid |
| Main power | 5.5KW machine |
| Forming thickness | 0.4mm—0.8mm color steel and galvanized steel |
| Voltage, Frequency, Phase | 380 V, 50 Hz, 3Phase |
| Control system | PLC control system Panasonic |
| Transmission | by single Chains 1.02 inch |
| Feeding and guide | surface polished and coated with chrome |
| Machine adopt new station with chrome (at the up of each station have dial) |
| Size of machine | 10000x1400x1200(mm) need 1x40GP container |
| Weight: | about 6500Kgs |
| Color of machine | Blue(according customer requirement) |
| Machine should be with four legs (made from metal) in 350mm |
| Machine adopt hydraulic cutting |
| Hydraulic Cutting after forming | Cut the sheet after roll forming to required length |
| Cutting motion | The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. |
| Material of cutting blade | CR12with heat treatment |
| Length measuring | Automatic length measuring |
| Tolerance of length | 3m+/- 1.5mm |
Composition of machine
| NO. | NAME | UNIT | QTY |
| 1. | Roll forming main machine | SET | 1 |
| 2. | Manual de-coiler | SET | 1 |
| 3. | 6T hydraulic de-coiler | SET | 1 |
| 4. | Control panel | SET | 1 |
| 5. | Hydraulic station | SET | 1 |
| 6. | Manual out table | SET | 2 |
| 7. | 6M /12M auto stacker | SET | 1 |
| 8. | Spare tools | BOX | 1 |
Technological process
Decoiling—feeding—guide---roll forming----cut to length—product packing manual
Profile:(Basis on customer’s require to design)

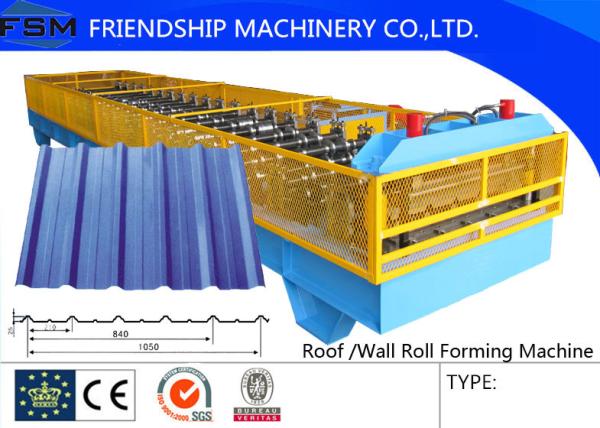

Some pictures of machine
